PHYTOFY® RL

Smart LED Lighting System for Horticulture Research

Key Features and Benefits

  • Tunable LED system with six different channels.
  • The variable spectra can be used for far-red end-of-day light, UV light supplementation, night-interruption, etc.
  • Advanced software, designed with plant biologists, to schedule different light treatments throughout photoperiod and/or plant life-cycle.
  • Precise irradiance map, calculated by the software – no quantum flux measurements required.
  • Thin and robust form factor, ideal for growth chambers, racks and vertical farm operations.
  • Perfect choice for developing light recipes, allowing growers and researchers to improve flavor, nutrition profile and overall production.

Where to Buy

US Europe

Request More Information

Contact Us

Product Details

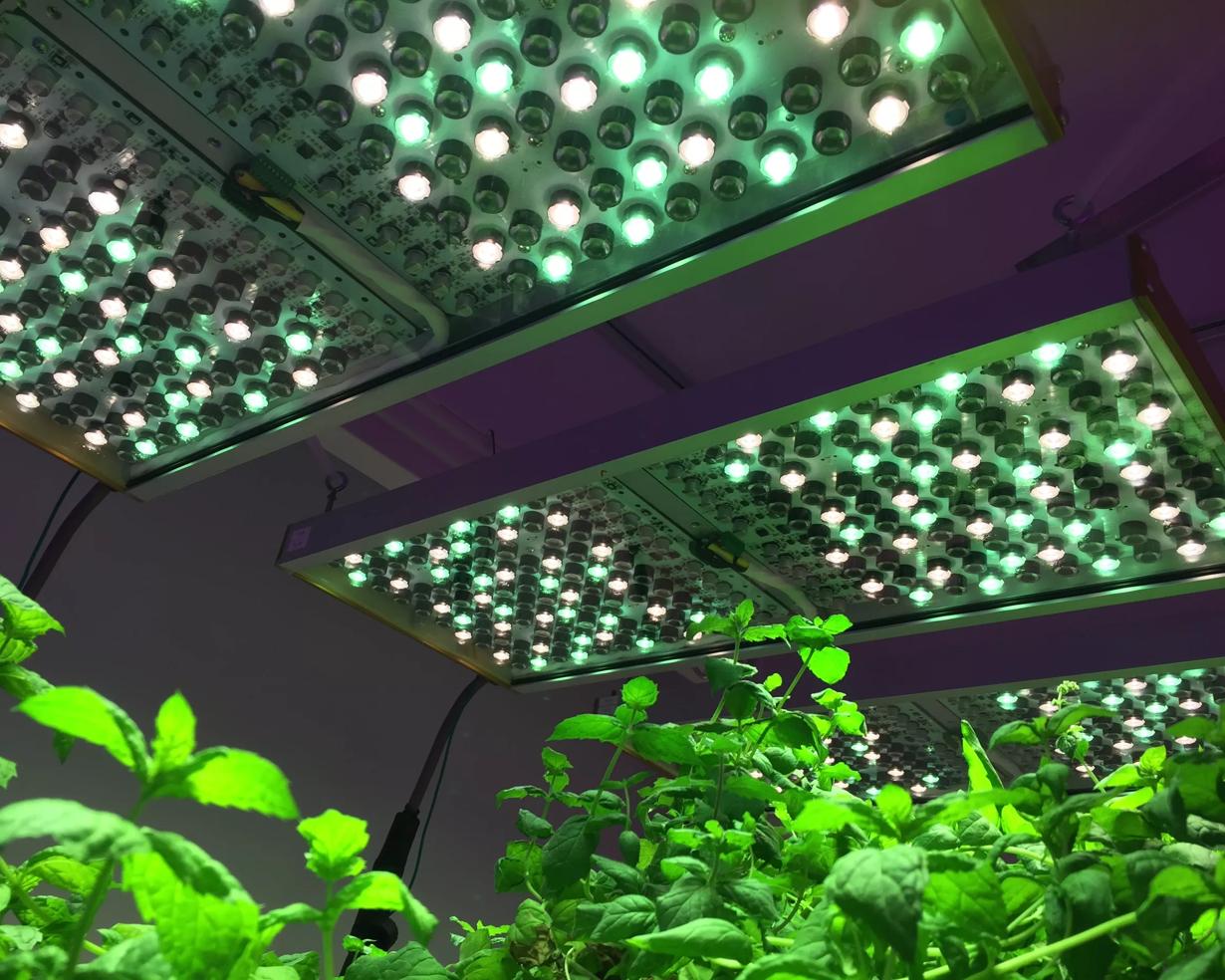

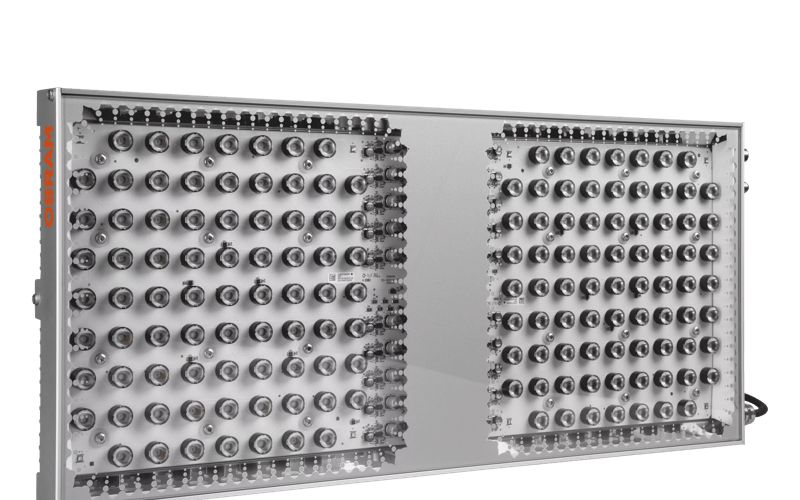

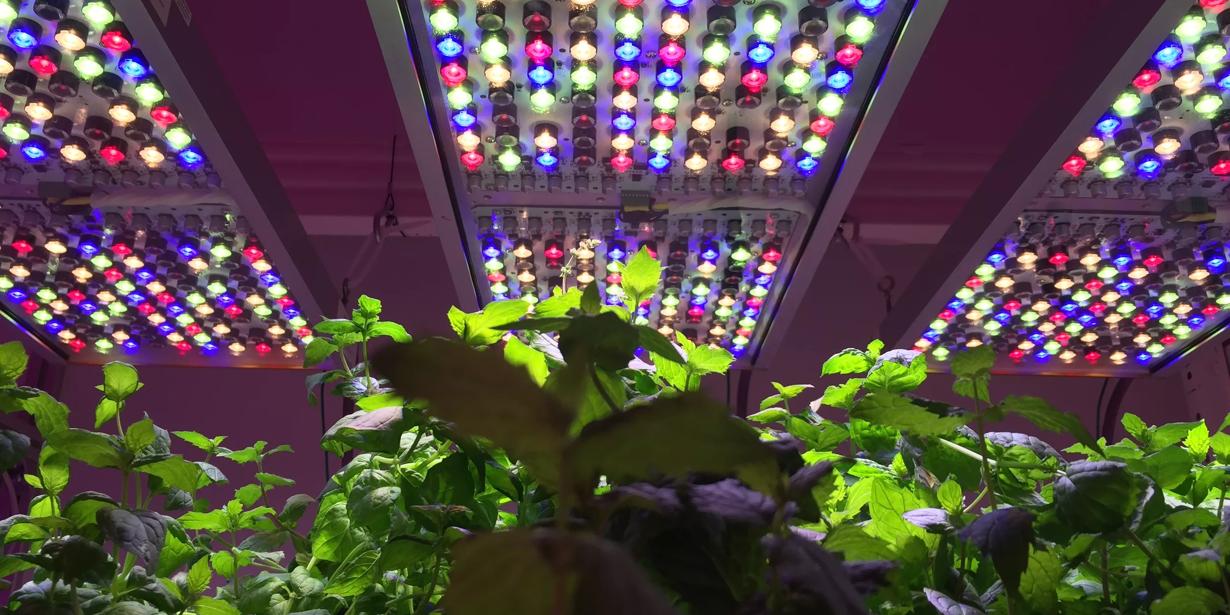

PHYTOFY® RL is a tunable LED horticultural lighting system from UV to Far-red with real-time control and scheduling features for each individual channel. The calibrated system is designed for delivering light treatments with varying spectra, wavelength and intensity, for horticulture research. This system is the perfect choice for the research and development of plant-specific light recipes. Light control is available through a graphical user interface.

Light Source: LED

Input Power: max. 150 W

Input Voltage Autosensing 100-240 V, 50/60 Hz

Spectral Distribution: 385 nm, 450 nm, 521 nm, 660 nm, 730 nm, 2700 K

PPFD (µmol m-2 s-1)*: UV 50, Blue 250, Green 100, Hyper Red 250, Far-red 100, 2700 K 250

Dimming: 10-100 %, individually per LED channel

Networking: Wired Ethernet or Wi-Fi, RS485 protocol

Interface: OSRAM User Interface

Thermal Management: Passive cooling

Fixture Dimensions: 667 x 299 x 44 mm | 26,2 x 11,8 x 1,7 in (l x w x h)

Fixture Weight: 8,9 kg | 19,6 lbs

*Specific for three-fixture system with center-center fixture spacing of 406 mm and canopy 406 mm below fixtures.

Resources

PHYTOFY RL Product Tutorial

Register your product and download 5 light recipes for the most commonly grown plants and herbs.

Register Now

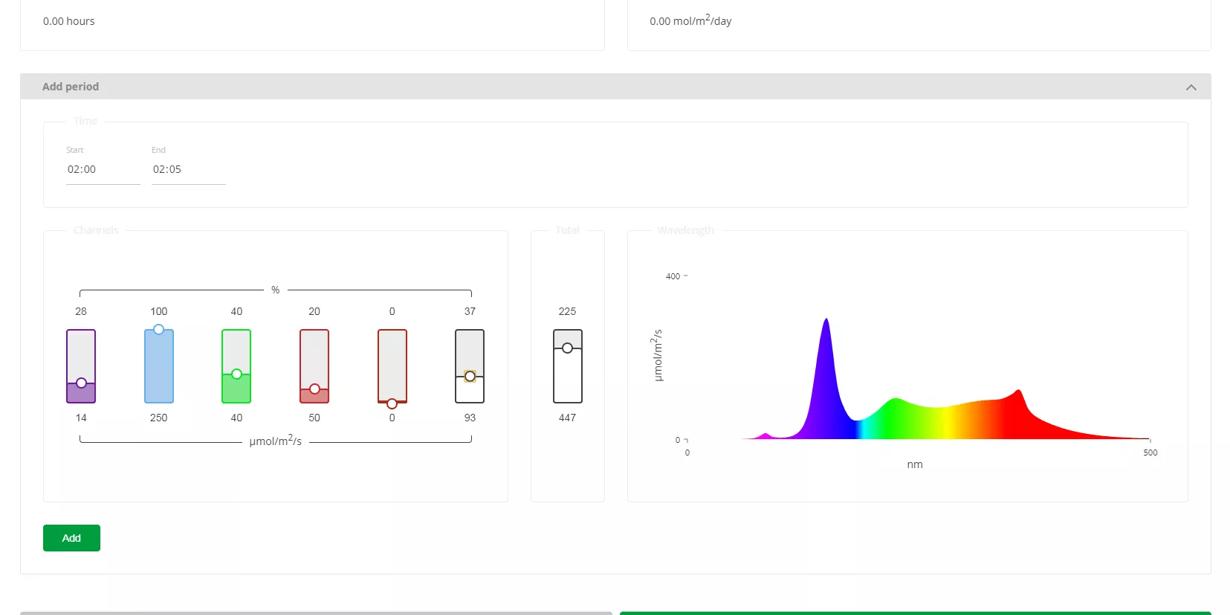

PHYTOFY RL Software Screencast

Advanced software, designed with plant biologists, to schedule different light treatments throughout photoperiod and/or plant life-cylce.

Download link available in the user manual.
